Destacadores PCDR-16
| Destacador com Nitrogênio Modelo | Força (daN) | Ø. Corpo | Ø. Haste | Cursos Disponíveis (mm) | Ações |
|---|---|---|---|---|---|
| PCDR-16 | 0,38 a 2,50 | M16x2 | 7 | 10 a 80 |

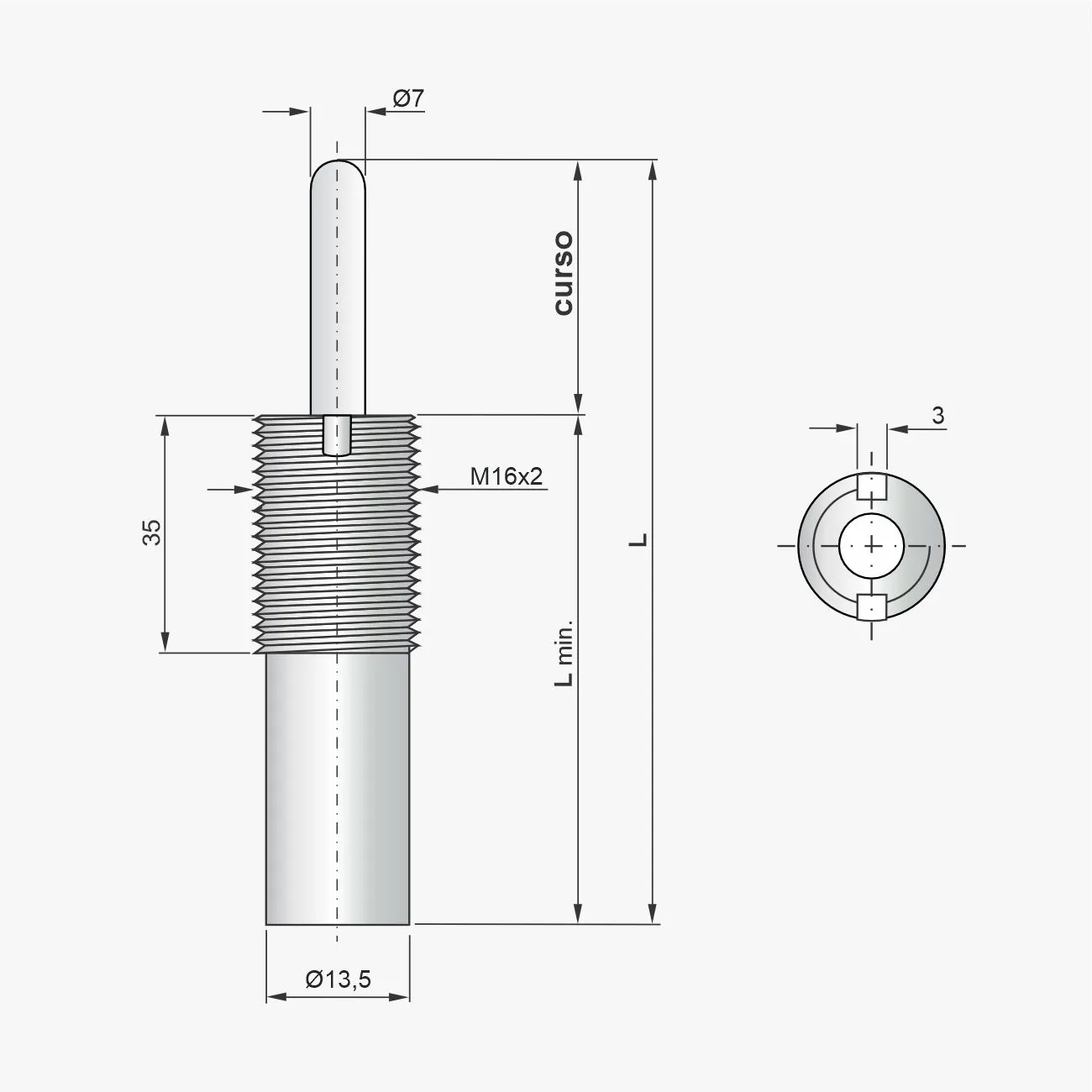

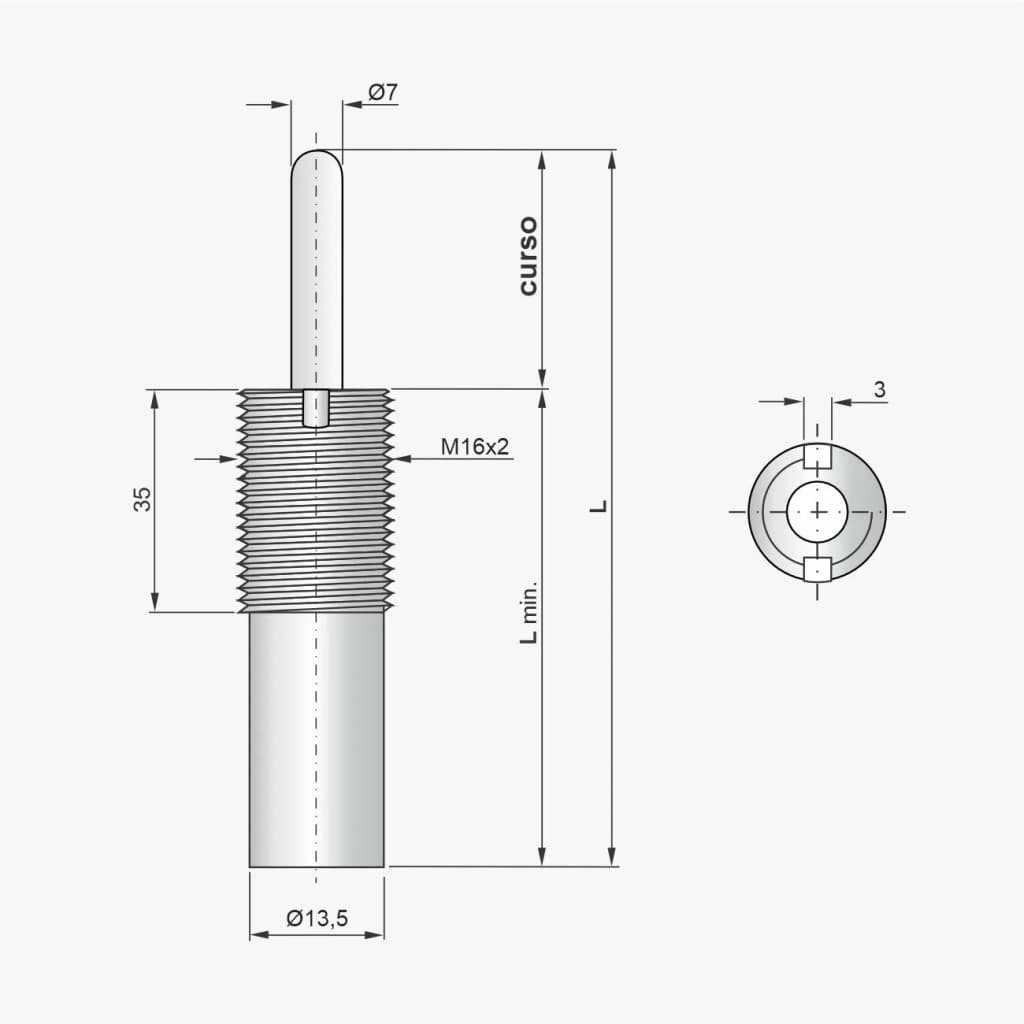

Destacador PCDR-16
| Código | Curso (mm) | Força N final | L (altura) mm | L min. (altura) mm | Força daN inicial | Força daN final | Download |
|---|---|---|---|---|---|---|---|
| PCDR-16-010-013 | 10 | 13 | 70 | 60 | 0.38 | 1.33 | |
| PCDR-16-010-045 | 10 | 45 | 70 | 60 | 1.3 | 4.55 | |
| PCDR-16-011-074 | 11 | 74 | 91 | 80 | 1.7 | 7.4 | |
| PCDR-16-015-040 | 15 | 40 | 75 | 60 | 1 | 4 | |
| PCDR-16-015-056 | 15 | 56 | 75 | 60 | 1.5 | 5.6 | |
| PCDR-16-020-034 | 20 | 34 | 100 | 80 | 0.69 | 3.45 | |
| PCDR-16-020-172 | 20 | 172 | 100 | 80 | 3.45 | 17.25 | |
| PCDR-16-021-081 | 21 | 81 | 141 | 120 | 2.1 | 8.1 | |
| PCDR-16-030-040 | 30 | 40 | 150 | 120 | 1.8 | 4 | |
| PCDR-16-030-045 | 30 | 45 | 110 | 80 | 0.65 | 4.55 | |
| PCDR-16-030-080 | 30 | 80 | 150 | 120 | 2 | 8 | |
| PCDR-16-030-132 | 30 | 132 | 180 | 150 | 5.61 | 13.25 | |
| PCDR-16-031-089 | 31 | 89 | 181 | 150 | 2.1 | 8.9 | |
| PCDR-16-040-037 | 40 | 37 | 190 | 150 | 1.32 | 3.72 | |
| PCDR-16-040-158 | 40 | 158 | 190 | 150 | 5.61 | 15.81 | |
| PCDR-16-041-080 | 41 | 80 | 241 | 200 | 1.6 | 8 | |
| PCDR-16-050-043 | 50 | 43 | 200 | 150 | 1.32 | 4.32 | |
| PCDR-16-050-099 | 50 | 99 | 250 | 200 | 1.93 | 9.99 | |
| PCDR-16-060-049 | 60 | 49 | 210 | 150 | 1.32 | 4.92 | |
| PCDR-16-060-116 | 60 | 116 | 260 | 200 | 1.93 | 11.6 | |
| PCDR-16-070-040 | 70 | 40 | 270 | 200 | 0.97 | 4.05 | |
| PCDR-16-070-132 | 70 | 132 | 270 | 200 | 1.93 | 13.2 | |
| PCDR-16-080-045 | 80 | 45 | 280 | 200 | 0.97 | 4.48 | |
| PCDR-16-080-100 | 80 | 100 | 280 | 200 | 2.5 | 10 |
